2XMOPP MEDICAL, 400 W AC-DC COMPACT, EFFICIENT POWER SUPPLY MDP400 SERIES
MDP400 SERIES

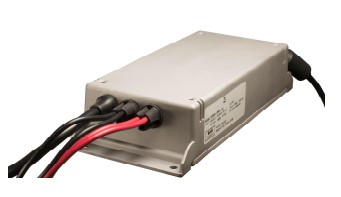

The Enedo MDP400-PP Series is a high-performance 400W AC-DC power supply designed for medical and industrial applications. It supports a universal 90–264VAC input and delivers regulated outputs (12–48VDC) with efficiency up to 94%.
Featuring 2×MOPP isolation, low leakage current, and auxiliary outputs (+5V standby, 12V fan), it ensures safe and reliable operation in critical systems. With multiple mechanical formats and compact 1U compatibility, it is ideal for space-constrained medical and laboratory equipment.
Key Features
90 – 264 VAC Universal input voltage range
400 W rated power (440 W peak)
Extremely high efficiency (94% typical)
Low stand-by consumption (<0.5 W)
12, 24, 28, 36 or 48V standard output variants
Active PFC, EN61000-3-2 compliant (Class C)
Low earth leakage current
Fan speed control circuit (off at <50 W load)
Over temperature protection
OV, OC, and short circuit protections
+5 V Stand-by, 2 A output
12 V Auxiliary, 1 A output
Remote On/Off and power good signals
U-chassis and boxed packages fit 1U applications.
ANSI/AAMI ES60601-1 3rd ed. compliant
IEC/EN 60601-1 3rd ed. compliant
RoHS 3 compliant (EU directive 2015/863)
4000 m altitude operation
