DDP600 Front-Fan Medical Grade Power Supplies

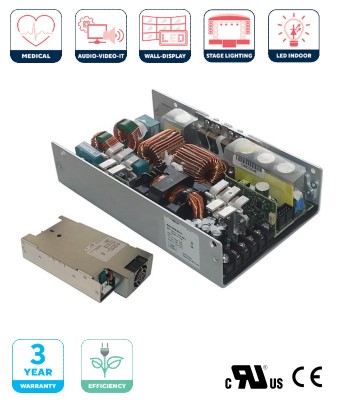

The DDP600 front-fan series medical grade power supplies are offered with an internal variable speed front-fan for optimal output power and thermal management, and provides a steady 600 W of regulated DC power through the full 85 to 305 VAC input voltage range, all in a 4.2 x 8.1 x 1.6″ (107 x 206 x 41mm) form factor.
Features
- 600 W steady state power with 800 W peak (up to 10s)
- 85 – 305 VAC wide input voltage range
- 24, 28, 36 and 48 VDC output variants
- 94% efficiency rating
- Parallel & N+1 redundant operation
- +5V stand-by & 12V auxiliary outputs
- Low stand-by consumption (< 0.35 W)
- Input surge current limiting
- 2x MoPP – BF compliant
Key Technical Features
Input
Input Voltage
85-264VAC
Input Frequency
47-440Hz
Output
# of Outputs
1
Output Voltage
24-48VDC
Current
8-25A
Power
600W
Efficiency
94%
Operational Temp
-20°C to +50°C
Standards Compliance
ES 60601-1 Ed. 3TH / IEC/EN 60601-1 Ed. 3TH / EN 60601-1-2 Ed. 4.1 / 2xMoPP protection grade BF appliances
DImensions
107.0 x 178.5 x 41.0 mm
Manufacturer
ENEDO
