MCB600 Medical Grade Power Supplies
MCB600

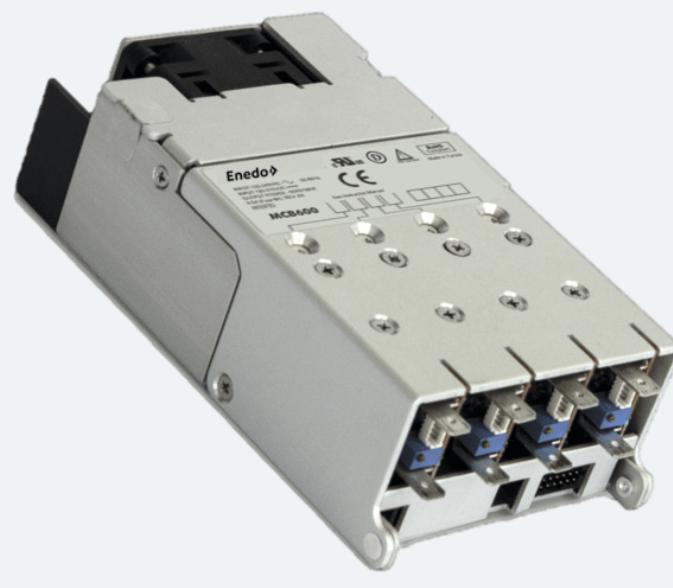

The MCB600 is a highly configurable medical grade power supply series that provides unrivalled performance and flexibility. Delivering 600 W and up to 8 outputs from a 3 x 5.6 x 1.6″ (78 x 144 x 41mm) package, the MCB600 is one of the smallest commercially available configurable power solutions on the market today.
MDS-060BAS12 A
Features
- Safety approval for Medical (IEC 60601-1-2), Industrial (IEC 62368) and IT
- Wide operating input voltage range: 80 Vac to 275 Vac or 120 Vdc to 300 Vdc
- Wide adjustable output voltage range (+/- 20%)
- 5 Vdc standby output
- High efficiency: up to 94%
- Size: 4 x 8 x 1.6 in (1U design)
- Variable speed fan control
- Low acoustic noise level of less than 38.5 dB(A)
- Active current sharing
- 2 x MOPP
- PMBus™ compatible for control, programming and monitoring
- 500,000 hour MTBF
Key Technical Features
Input
Input Voltage
85-264VAC
Input Frequency
47-63Hz
Output
# of Outputs
8
Output Voltage
5-48VDC
Current
3.1-25A
Power
600W
Efficiency
89%
Operational Temp
-20°C to +70°C
Dimensions
78 x 144 x 41mm
Standards Compliance
2x MoPP/ EN55011, EN 60601-1-2, / Class B, conducted radiated emissions.
Manufacturer
ENEDO
