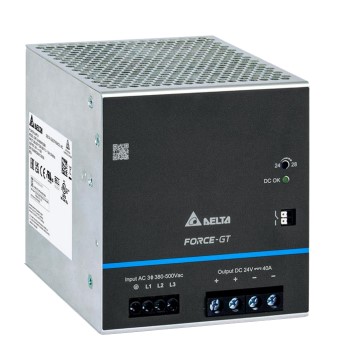

Force-GT DIN Rail Power Supply 960 W 3 Phase / DRF-V960W3GBA
DRF-V960W3GBA
The Force-GT Series DIN rail industrial power supply features high power density and high efficiency. The Series offers overcurrent protection in constant current mode, making it suitable for charging applications. Conformal coating is applied on the PCBAs to protect against dust and pollutants often found in harsh industrial environments. The Series’ electromagnetic radiated and conducted emissions are compliant with heavy industrial Class B Emission standard and Immunity standard, and complies with environmental protection standards RoHS Directive. In addition, Delta is the first to improve surge capacity (with SPD) to 6 kV / 6 kV in the industrial field.
Key Features
• Surge capacity (with SPD) up to 6 kV
• Universal AC input voltage range
• Built-in constant current circuit for charging applications
• Full load operating temperature up to 55°C
• Cold start at -40°C
• Ultra-Slim design
• Reduced no-load power consumption
• Built-in DC OK relay and LED indicator
• Conformal coatin
