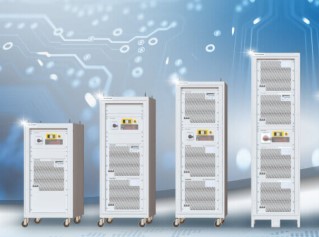

G5.RSS Versatile DC Power Supply
G5.RSS Versatile DC Power Supply
With decades of pioneering expertise, REGATRON delivers modular, scalable, and fully digitally controlled DC power supplies for advanced test and simulation tasks. From the industry’s first fully digital series in 1999 to today’s G5 platform, Regatron’s DC systems are engineered for parallel, series, and matrix operation, support regenerative power flow, and adapt precisely to demanding applications. REGATRON’s intuitive software, broad interface options, and flexible safety and cooling features ensure seamless integration into any high-performance environment.
Features
- Technologically advanced, fast switching, compact 19-inch power supplies
- High control dynamics in the 100…200 μs range – even at higher power levels up to 5000+ kW
- Exceptional accuracy with additional high-resolution current measurement range
- Wide current-voltage range with an autoranging factor 3
- CV, CC, CP, CR, and Ri/Gi-Sim control modes
- Regenerative and highly efficient, resulting in a significant reduction of energy consumption and heat dissipation
Key Technical Features
Input
Input Voltage
380-480 VAC
Input Frequency
47-63Hz
Output
# of Outputs
1
Output Voltage
80-1500VDC
Current
54-2028 A
Power
5000W
Efficiency
95%
Operational Temp
0°C to +41°C
Dimensions
From 4U
Standards Compliance
EN ISO 13849 / EN 62477-1
Manufacturer
REGATRON
