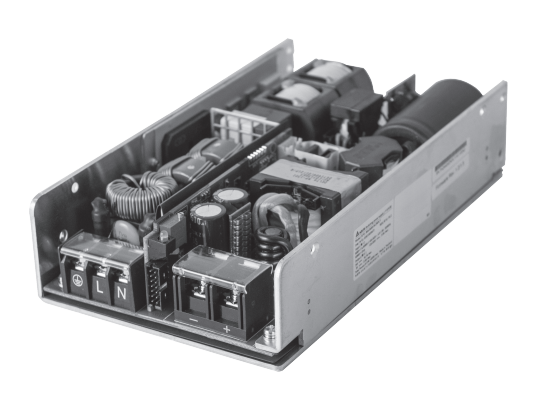

IMA 400 Watts Power Supply Series for medical and industrial applications
IMA 400 Watts
The IMA-S400-12-ZNPLI is a 400 W medical/industrial-grade AC-DC power supply offering a 12 V / 33.3 A output, wide universal input (80-275 Vac or 120-300 Vdc), high efficiency (up to ~94 %), full medical-safety certification including 2 × MOPP for medical-device use.
HIghlights
● Safety approval for Medical (IEC 60601-1-2), Industrial (IEC 62368) and IT
● Wide operating input voltage range: 80 Vac to 275 Vac or 120 Vdc to 300 Vdc
● Wide adjustable output voltage range (+/- 20%)
● 5 Vdc standby output
● High efficiency: up to 94%
● Size: 4 x 6.96 x 1.6 in (1U design)
● Low acoustic noise level of less than 30 dB(A)
● Active current sharing
● 2 × MOPP
● PMBus™ compatible for control, programming and monitoring
● 500,000 hour MTBF
● Optional conformal co
Key Technical Features
Input
Input Voltage
80 Vac to 275 Vac
Input Frequency
47-63Hz
Output
Output Voltage
12-48 VDC
No. of outputs
1
Efficiency
94%
Current
8.33-33.3A
Power
400W
Dimensions
176.8 x 101.6 x 40.6 mm
Temperature
-20°C to +70°C
Standards Compliance
IEC 60601-1:2005, EN 60601-1(2006) ANSI/AAMI ES 60601-1(2005) CAN/CSA C22.2 No. 60601-1 (2008);
Manufacturer
Manufacturer
DELTA
