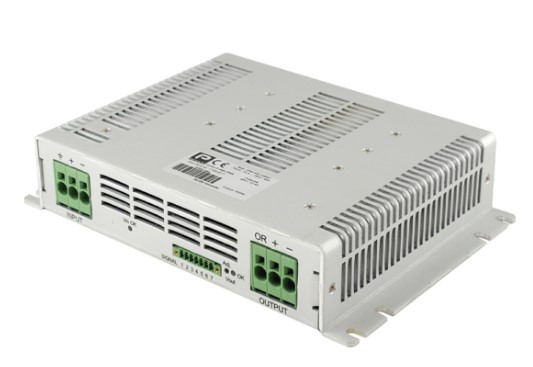

CRS-500 Industrial and Railway 500W DC/DC converters
CRS-500 high power DC/DC converters
The CRS-500 is a 500W DC/DC converter designed for industrial and railway applications requiring high reliability. It offers a wide 14.4–144V input range, single outputs (24V, 48V, 110V), and up to 92% efficiency.
Built for demanding environments, it operates up to 70°C with natural convection cooling and supports options such as ORing FET for redundant operation. EN50155-compliant versions are available for railway use.
Key Features
– Oring FET option
– High input-output isolation
– Adjustable output voltage
– Remote sensing
– Remote inhibit
– Input & Ouput OK LEDs
– Output failure alarm
– Input reverse polarity protection
– Railway version EN50155
– Fire and smoke: EN45545-2 approved
– Efficiency up to 92%
Key Technical Features
Input
Input Voltage
14.4V-144V
Input Frequency
N/A
Output
No. of outputs
1
Output Voltage
24-110VDC
Current
4.54 - 20.8A
Efficiency
90%
Power
500W
Temperature
-25 - 55
Dimensions
266 x 180 x 54.8mm
Standards Compliance
EN45545-2 approved ; EN50155
