IT7800 Programmable AC Power Supply

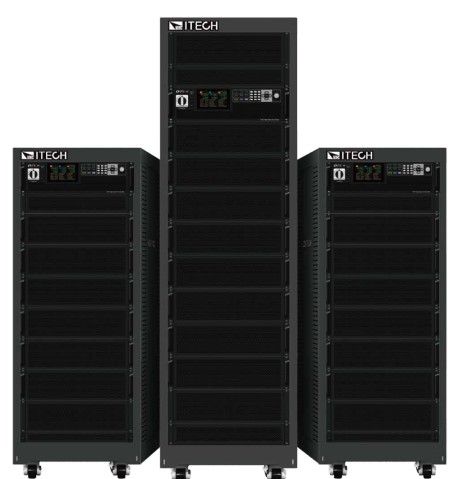

IT7800 High Power Programmable AC Power Supply High Voltage Series
The IT7800 series is a new generation of high power programmable AC power supply featuring user-friendly programming options, a novel touch interface, and rich waveform analysis capabilities. The high-voltage series is available at voltages as high as 700 VL-N and even fulfills 1050 VL-N test standards. By paralleling them, the high voltage series may be easily enlarged to 900 kVA.
HIghlights
♦ Voltages up to 700 VL-N, even 1050 VL-N
♦ Harmonic simulation and analysis functions up to 50th *1
♦ Output frequency: 16Hz~100Hz, voltage and frequency output variation rate adjustable
♦ Built-in AC power meter
♦ AC/AC+DC output mode possible
♦ Three-phase output
♦ Harmonic and interharmonic waveform synthesis *2
♦ Programmable output impedance
♦ Touch screen design, simple UI interface
♦ Arbitrary waveform output can be simulated, and CSV file import waveform is supported.
♦ Built-in rich waveform database
♦ List mode analog utility reproduction function, realizing the instantaneous power interruption simulation function
♦ Output start/stop phase angle can be set from 0 to 360°.
♦ Surge & Sag function*2
♦ Relay Ctrl relay control output function for electrical isolation between the object to be measured and the source.
♦ Built-in USB/CAN/LAN/digital IO interface, optional GPIB/RS232 interface.
♦ Built-in IEC61000-4-11/4-13/4-14/4-28 test waveforms*2
