LPM200 SERIES Medical grade power supplies

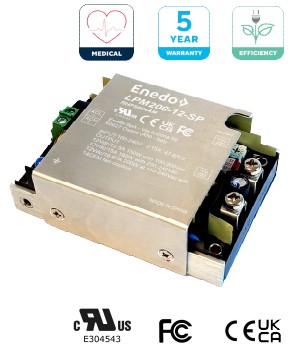

LPM200 Medical Grade Power Supplies
Compact medical-grade AC-DC power supplies delivering up to 200 W with forced air or 190 W+ via convection cooling. Available in 12–54 VDC outputs, they feature 94% typical efficiency, low no-load consumption, and a semi-potted baseplate for conduction cooling. Fully compliant with IEC 60601-1 (2× MoPP, BF rated), EMC Class B, and environmental standards, they are ideal for space-constrained, high-demand medical applications.
Features
- 85 – 264 VAC Universal input voltage range
- 200 W rated power
- 1.00” (25.4 mm) low profile package (28.4 W/in3)
- High efficiency (up to 94%)
- No-load low power consumption: <0.3 W for 12, 24, VDC; <0.4W for 48 VDC standard output variants.
- Low earth leakage current: <300 µA
- Over temperature protection, auto recovery
- Output over voltage protection, latch off
- Overload and short circuit protections, auto recovering
- Metallic protecting cage on semi-potted PWA
- IEC safety installation Class I
- Certified to the latest IEC/EN/UL 62368-1 edition
- Medical safety approval to IEC 60601-1 3rd edition, 2xMoPP protection grade BF appliances compatible.
- IEC 60601-1-2 4th edition EMC compliant.
- Operating Altitude up to 5000 m (OVC II), up to 2000 m (OVC III)
- RoHS-3 compliant (EU directive 2015/863)
- 5 years warranty
Key Technical Features
Input
Input Voltage
85-264VAC
Input Frequency
47-63 Hz
Output
# of Outputs
1
Output Voltage
12-54VDC
Current
3.7-16.67A
Power
200W
Efficiency
94%
Operational Temp
-40°C to +80°C
Standards Compliance
ES 60601-1 Ed. 3TH / IEC/EN 60601-1 Ed. 3TH / EN 60601-1-2 Ed. 4.1 / 2xMoPP protection grade BF appliances
Manufacturer
ENEDO
