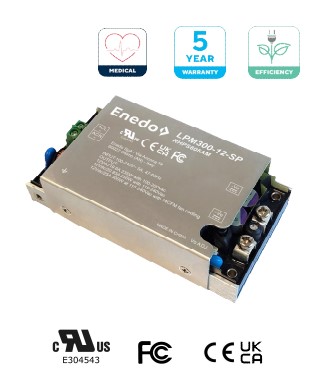

LPM300 SERIES Medical grade power supplies
LPM300 Medical Grade Power Supplies
High-density, medical-grade AC-DC power supplies delivering up to 300 W with forced air or 190 W+ via convection cooling. Available in 12–54 VDC outputs, they feature 94% efficiency, ultra-low no-load consumption, and a semi-potted baseplate for conduction cooling. Certified to IEC 60601-1, EMC Class B, and FCC standards, they support IEC Class I or II installations—ideal for space-limited, high-demand medical applications.
Features
- 85 – 264 VAC Universal input voltage range
- 300 W rated power
- 1.00” low profile package actor (32.1 W/in3)
- High efficiency (up to 94%)
- No-load low power consumption < 0.3 W for all output variants
- Low earth leakage current (<300 µA)
- Over temperature protection, auto-recovery
- Output over voltage latch off protection
- Overload and short circuit hiccup protections
- Metallic protecting cage on semi-potted PWA
- IEC safety installation Class I and Class II
- Certified to the latest IEC/EN/ANSI-AAMI 60601-1 edition
- Medical safety approval to IEC 60601-1 3rd edition, 2xMoPP protection grade BF appliances compatible.
- IEC 60601-1-2 4th edition EMC compliant.
- Compliant to EN 55011 and certified to CFR FCC Class B
- Operating Altitude up to 5000 m
- RoHS-3 compliant (EU directive 2015/863)
- 5 years warranty
Key Technical Features
Input
Input Voltage
85-264VAC
Input Frequency
47-63 Hz
Output
# of Outputs
1
Output Voltage
12-54VDC
Current
5.56-25A
Power
300W
Efficiency
94%
Operational Temp
-40°C to +80°C
Standards Compliance
ES 60601-1 Ed. 3TH / IEC/EN 60601-1 Ed. 3TH / EN 60601-1-2 Ed. 4.1 / 2xMoPP protection grade BF appliances
DImensions
57.9 x 104.0 x 25.4 mm
Manufacturer
ENEDO
