MDP1200-FF Front-Fan Medical Grade Power Supplies
MDP1200-FF Front-Fan Medical Grade Power Supplies

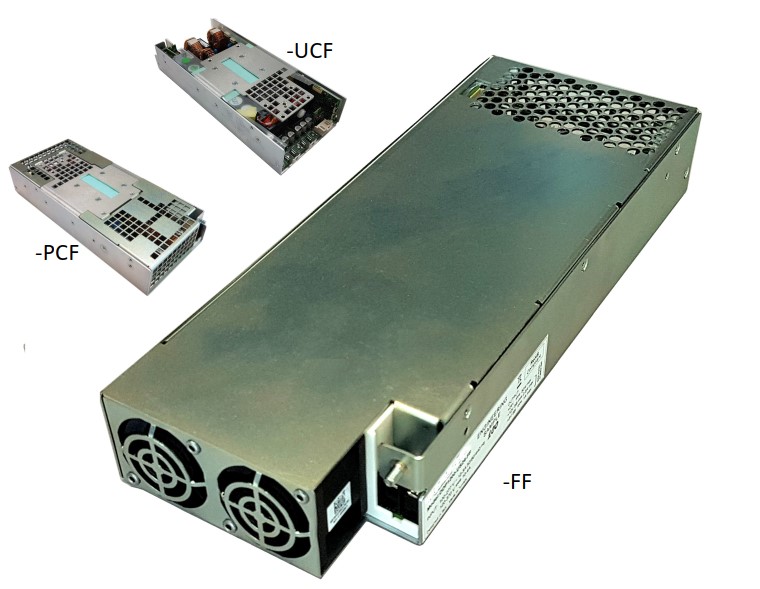

The MDP1200 series of medical-grade AC-DC power supplies delivers up to 1200 W of reliable regulated power in a compact 1U-compatible design. With typical 94% efficiency, it minimizes heat generation for optimal thermal management and quiet operation. Available in multiple package options (enclosed or U-shaped), the series supports 24 V or 48 VDC outputs, standby voltages, and advanced protection features. Digital PMBus™ communication and analog control signals enable easy system integration and monitoring. Fully compliant with IEC 60601-1 (3rd edition) safety and EMC standards, the MDP1200 is designed for BF-rated medical applications and can be paralleled for higher power or redundancy.
Features
- Wide input voltage range 85 – 264 VAC
- 1200 W rated power
- 24 and 48 VDC standard output variants
- High operating efficiency up to 94%
- Low earth/touch leakage currents
- <400 µA / <100 µA
- +5V & +12V stand-by outputs
- Built-in current sharing and OR-ing for parallel operation
- 2x MoPP grade protection – BF apparatus compatible
- 4000m altitude operation
- Built-in DSP and PMBus™ communications protocols
Key Technical Features
Input
Input Voltage
90 – 305 VAC
Input Frequency
47-63 Hz
Output
# of Outputs
1
Output Voltage
24-48VDC
Current
25-50A
Power
1200W
Efficiency
94%
Operational Temp
-20°C to +60°C
Dimensions
101.6 x 234.7 x 41.0 mm
Standards Compliance
IEC 60601-1 3rd edition, 2x MoPP / IEC 60601-1-2 4th edition EMC compliant
Manufacturer
ENEDO
