MDP200 SERIES 2XMOPPMEDICAL, COMPACT EFFICIENT 200 W, AC-DC POWER SUPPLY
MDP200 SERIES

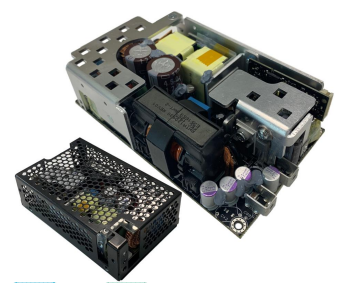

The MDP520 Series is a high-power, medical-grade AC-DC power supply offering up to 460 W continuous (520 W peak) output in a compact 3″×5″ open-frame format, wide universal input (90-305 VAC), high efficiency up to 94.5 %, IEC/EN/UL 60601-1 (3rd ed.) 2×MoPP safety certification and full medical-grade protection features ideal for demanding diagnostic, surgical and clinical equipment.
HIghlights
· Universal input voltage range (90 – 305 VAC)
· Input surge current limiting (< 20 A)
· 340 W at natural convection, 460 W forced air cooling, 520 W temporary (10 s)
· Open frame, 3 x 5” industrial standard footprint
· High efficiency up to 94.5%
· 24, 48 and 56 VDC standard output voltages
· Low stand-by consumption (<0.35 W)
· Active PFC, EN61000-3-2 compliant (Class C, >20% load)
· Low earth / touch leakage current (<250 / 100 µA)
· Over temperature, OV, OC and SC protections.
· Stand by +5 V, 1 A output.
· Remote On / Off signal
· Power good and remote sense signals
· Medical IEC 60601-1 3rd edition certified, 2x MoPP rated and BF appliances compatible.
· IEC 60601-1-2 4th edition EMC compliant.
· RoHS 3 compliant (Directive EU 2015/863)
· Compatible with 5000 m altitude o
