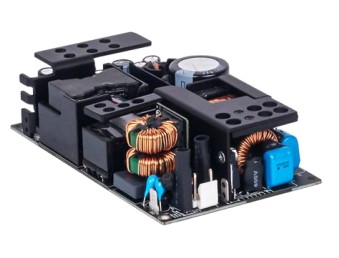

MDS-300APB12 AA Series Medical AC-DC Open Frame Power Supply
MDS-300APB12 AA
The MDS-300APB12 AA is a compact medical AC-DC power supply in a 3″ x 5″ open-frame design, delivering 300 W with high energy density. Certified to IEC 60601-1 (2xMOPP, Type BF), it ensures low leakage current, 500K-hour MTBF, and compliance with EN/BS EN 55011/55032 standards. Features include 5 V standby, remote on/off, and robust terminals—ideal for medical and industrial applications requiring reliable performance.
Features
Safety Approvals to IEC 60601-1 & IEC 62368-1
Compliant with IEC 60601-1-2 4th Ed. Requirements
Up to 220 Watt Convection in 3″ x 5″ x 1.4″ Package
Up to 500 K Hrs MTBF
Suited for Type BF Medical Products
2 × MOPP isolation
Key Technical Features
Input
Input Voltage
90 – 264 VAC
Input Frequency
47-63Hz
Output
# of Outputs
1
Output Voltage
12-48VDC
Current
6.25-25A
Power
300W
Efficiency
93%
Operational Temp
-10°C to +70°C
Dimensions
127 x 76.2 x 35.6 mm
Standards Compliance
IEC 60601-1 CB report EN 60601-1 CAN/CSA-C22.2 No. 60601-1 ANSI / AAMI ES 60601-1
Manufacturer
DELTA
