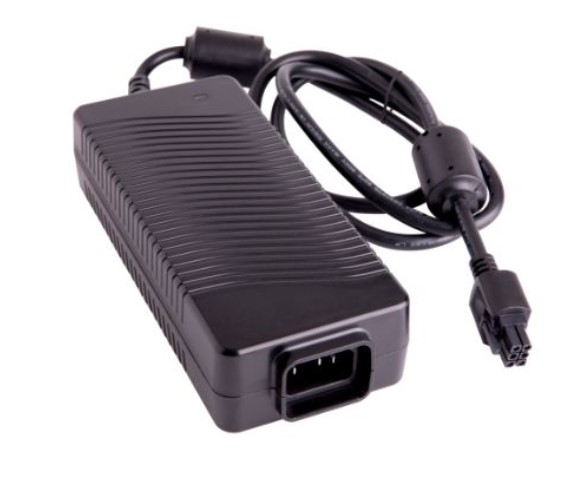

ME150 Series – 150 W Single Output External Power Adapter Medical Grade
ME10 Series
ME150 series of desktop AC-DC external power adapter comprises four output models. All models feature medical safety approvals and accept a universal input of 85 to 264 VAC. ME150 series power adapters provide up to 150 W of output power with IP22 rated enclosure and are ideal for applications that are used in environments where AC mains power may be noisy or unstable and equipment shutdown is not an option.
HIghlights
Features
- Meets UL/EN/IEC60601-1-2, 4th edition for EMC
- Approved to EN/IEC/UL60601-1, 3rd edition with isolation levels which satisfy the 2 MOPP requirements
- Meets DoE Efficiency Level VI and EU CoC Version 5, Tier 2 Requirements
- Meets EN55011/CISPR11, FCC Part 15.109 Class B Conducted & Radiated Emissions
- E-cap life of >10 years
- IP22 Rated Enclosure
- 3 Year Warranty
Key Technical Features
Input
Input Voltage Range
90-264VAC
Input Frequency
47-63 Hz
Output
# of Outputs
1
Output Voltage
12-48 VDC
Current
3.2-12.5A
Power
150W
Efficiency
88 %
Operational Temp
-20°C to +50°C
Dimensions
174 x 72 x 38 mm
Standards Compliance
IEC/EN/UL60601-1, 3rd edition
Manufacturer
Advanced Energy
