MEB-1K5A series Medical / Industrial AC-DC Power Supply
MEB-1K5A series

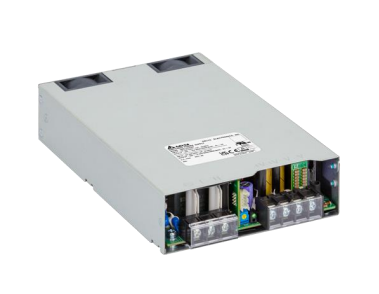

The MEB-1K5A24T is a 1,500 W AC-DC enclosed converter with universal 90–264 VAC input and high 92 % efficiency. It delivers 24 V / 62.5 A output (with derating) and includes a 5 V/2 A standby rail, current sharing, and full protections. With 2 MOPP isolation and compact form, it’s a powerful ,medical and industrial power supply solution for demanding medical and industrial systems.
MDS-060BAS12 A
Features
• Up to 1500 Watt in 5″ x 8.03″ x 1.59″ Package
• Up to 23.5 W/inch3 Power Density
• Full Power up to 50°C Ambient
• Up to 500 KHrs MTBF
• 5 V/2 A Standby Output
• Current Sharing
• Conformal Coating
• Class B Conducted and Radiated EMI
• LED Indicator
• Remote On/Off control
• Analog Voltage Trimming
• Intelligent Fan Speed Control
• Compliance with IEC 61000-4-6 20V/m for semiconductor applications
