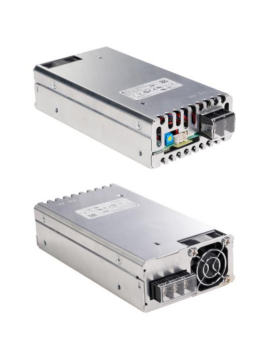

MEB-500 series Medical / Industrial AC-DC Power Supply
MEB-500
The MEB-500A24F is a 500 W AC-DC panel-mount converter with a universal 90–264 VAC input. It delivers 24 V / 21 A output with ~92 % efficiency, dual MOPP isolation, remote ON/OFF, 5 V standby, and full protections. Certified for medical and ITE use, it’s a dependable industrial / medical power supply solution .
Features
• Safety Approvals to IEC 60601-1 & IEC 60950-1 & IEC 62368-1
• Compliant with IEC 60601-1-2 4th Ed. Requirements
• High Power Density
• Built-in Remote On/Off
• 5 V/1 A Standby Output
• 12 V/0.5 A Fan Output for System
• IT & Medical Safety Approvals
Key Technical Features
Input
Input Voltage
90-264 VAC
Input Frequency
47-63Hz
Output
# of Outputs
1
Output Voltage
24VDC
Current
21A
Power
504W
Efficiency
92%
Operational Temp
-20°C to +70°C
Dimensions
165.3 × 85.2 × 41 mm
Standards Compliance
IEC 60601-1 CB report TUV EN 60601-1 UL 60601-1 + ANSI/AAMI ES60601-1 + CAN/CSA 60601-1
Manufacturer
DELTA
