Medical/Industrial AC-DC Configurable Power Supply Up to 700 W / MEG-700A Series
MEG-700A Series

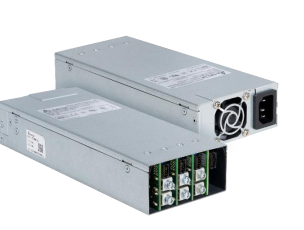

The Delta MEG-700A3 is a compact 700 W configurable AC-DC power supply offering flexible 2–60 V output and high power density in a small 3-slot 3.5” × 8.5” package. Designed for medical and industrial applications, it features 2xMOPP isolation, universal 90–264 Vac input, current sharing, and compliance with stringent safety and EMC standards including IEC 60601-1-2 immunity.
Key Features
Up to 700 W in 3.5” x 8.5” x 1.63” Package
Up to 14.5 W/inch3 Power Density
Full Power up to 50°C Ambient
3 Slots Modules Configurable
2xMOPP Isolation for Medical Application
Output selectable from 2 V to 60 V
Current sharing for single slot modules
Class B Conducted and Radiated EMI
IEC 60601-1-2 4th edition immunity compliance
Normal and Reversed Option for Global Remote On/Off
Analog Voltage Trimming
Conformal coating on PCBAs to protect against common dust and pollutants
