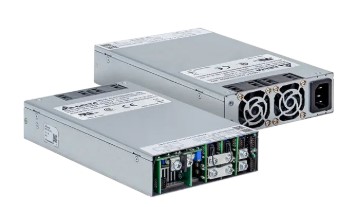

MEG-A Series AC-DC Configurable Power Supplies
MEG-A Series
Delta Electronics is the world’s largest provider of switching power supplies. With its extensive experience in power supply development and manufacturing, Delta introduced the MEG-A Series of AC-DC configurable power supply for medical and industrial applications. These isolated power modules enable the users to configure and combine output up to a maximum of 3000 watts using single or dual output modules.
Key Features
- Up to 3000W
- Up to 27W/inch³ power density
- Up to 9 slots modules configurable
- Full power up to 50°C ambient
- Up to 500kHrs MTBF
- 2xMOPP isolation for medical application
- Output selectable from 2V to 60V
- Current sharing
- Class B conducted and radiated EMI
- IEC 60601-1-2 4th edition immunity compliance
- Normal and reversed option for global remote on/off & on/off & air flow direction without power de-rating
- Analog and digital voltage trimming
- PMBus Ver 1.3 supported
- Intelligent fan speed control
- Optional RS485/RS232/USB Communication Adapters
- PC GUI for easy parameter setting and monitoring
Key Technical Features
Input
Input Voltage
90-264 VAC
Input Frequency
47-63 Hz
Output
Output Voltage
54V,54V, 12Vdc
No. of outputs
3
Efficiency
93%
Current
5.55, 5.55,25A
Power
900W
Dimensions
88.9 x 254 x 40.5mm
Temperature
-20°C ~70°C
Standards Compliance
IEC 60601-1 ; IEC 62368-1 ; UL 60601-1 + CAN/CSA 60601-1 ; UL 62368-1 + CAN/CSA 62368-1 ; SEMI F47
Manufacturer
Manufacturer
DELTA
