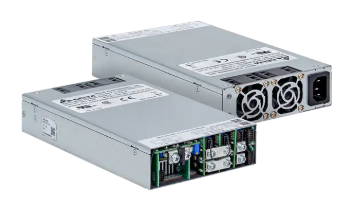

MEG-A Series AC-DC Configurable Power Supplies for Medical & Industrial
MEG-A Series
MEG-A Series output voltage can be configured between 2Vdc to 60Vdc, and output current up to 45A with a single slot output module. Triple slot and dual output modules are also available for different system requirements.
It comes with universal AC input from 90Vac to 264Vac and a wide operating temperature of -20°C to +70°C (with full power up to 50°C). Additional features of this configurable power supply include current sharing, PC GUI for easy parameter setting and monitoring, and intelligent fan speed control. Communication adapters can also convert PMBus to USB, RS232, or RS485 according to system requirements.
Key Features
- Up to 3000W
- Up to 27W/inch³ power density
- Up to 9 slots modules configurable
- Full power up to 50°C ambient
- Up to 500kHrs MTBF
- 2xMOPP isolation for medical application
- Output selectable from 2V to 60V
- Current sharing
- Class B conducted and radiated EMI
- IEC 60601-1-2 4th edition immunity compliance
- Normal and reversed option for global remote on/off & on/off & air flow direction without power de-rating
- Analog and digital voltage trimming
- PMBus Ver 1.3 supported
- Intelligent fan speed control
- Optional RS485/RS232/USB Communication Adapters
- PC GUI for easy parameter setting and monitoring
Key Technical Features
Input
Input Voltage
90-264 VAC
Input Frequency
47-63Hz
Output
Output Voltage
54V,54V, 12 Vdc
No. of outputs
3
Efficiency
93%
Current
5.55, 25A
Power
900W
Dimensions
88.9 x 254 x 40.5mm
Temperature
-20°C ~70°C
Standards Compliance
Manufacturer
Manufacturer
DELTA
