MEU-650A12T AC-DC power supply
MEU-650A12T

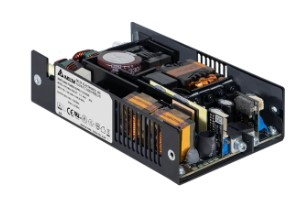

The Delta MEU-650A12T is a high-performance 12 V open-frame AC-DC power supply delivering up to 600 W (with forced-air cooling) in a compact chassis mount design. With universal 90–264 VAC input, high efficiency (up to ~96%), and robust feature set including remote on/off, standby output and remote sense, it supports both industrial and medical applications. Conformal coating and rugged construction ensure durability in demanding environments, while advanced safety and EMC standards support global system integration
Key Features
- Convection / Force Air Cooled
- Up to 650 Watt in 4″ x 6″ x 1.575″ Package
- Up to 17.2 W/inch³ Power Density
- Full Power up to 50°C Ambient
- Very High Efficiency up to 96%
- Up to 500 KHrs MTBF
- 2 x MOPP Isolation
- Suited for Type BF Medical Products
- 5 V / 2 A Standby Output
- 12 V / 0.6 A Fan Output (24 V & 48 V model)
- Current Sharing
- Conformal Coating
- Class B Conducted and Radiated EMI
- IEC60601-1-2 4th Edition Immunity Compliance
- Normal and Reversed Option for Remote On/Off and Power Good Signal
- Voltage Trimming
Key Technical Features
Input
Input Voltage
90-264 VAC
Input Frequency
47-63 Hz
Output
No. of outputs
1
Output Voltage
12, 24, 48 Vdc
Current
33.4, 18.75, 9.375A
Efficiency
96%
Power
650W
Temperature
-20°C ~70°C
Dimensions
152.4 x 101.6 x 40 mm
Standards Compliance
CB report and EN 60601-1 series ; CAN/CSA-C22.2 No. 60601-1 + ANSI/AAMI ES 60601-1 ;
Manufacturer
Manufacturer
DELTA
