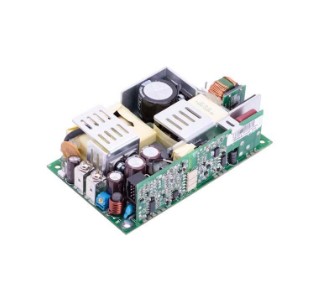

MINT1275 Series – 275 W Single Output Medical Grade
MINT1275 Series
MINT1275 series is approved to EN/IEC/UL 60601-1, 3rd edition, with isolation levels which satisfy the 2MOPP requirements. The MINT1275 series is ideal for portable medical devices, and many other applications where medical certifications, power density and cost are critical. The MINT1275 series operates at universal input range of 90 to 264 VAC and wide temperature range -10 to 70 ºC, delivering full rated output power up to +50 ºC. In addition, these models feature Power Good and DC OK signals.
HIghlights
Features
- 3” x 5” x 1.4” Package
- Up to 275 W of AC-DC Power
- Universal Input 90 to 264 VAC
- 5 V standby and 12 V fan outputs
- Efficiency 92% typical
- Ideal for 1U Applications
- Class I and Class II versions
- Approved to CSA/EN/IEC/UL60601-1, 3rd Edition, 2 x MOPP Isolation
- Forced Current Share
- Inhibit, Power Fail, Output OK Signals
- 3 Year Warranty
- RoHS Compliant
Key Technical Features
Input
Input Voltage Range
90-264VAC
Input Frequency
47-63 Hz
Output
# of Outputs
1
Output Voltage
12-56VDC
Current
4.68-21.8A
Power
275W
Efficiency
92 %
Operational Temp
-10°C+70°C
Dimensions
127 x 76.2 x 33 mm
Standards Compliance
CSA/IEC/EN/UL60601-1, 3rd Edtion
Manufacturer
Advanced Energy
