MPS Series DC/DC Powe Supply
MPS Series power DC/DC power supply

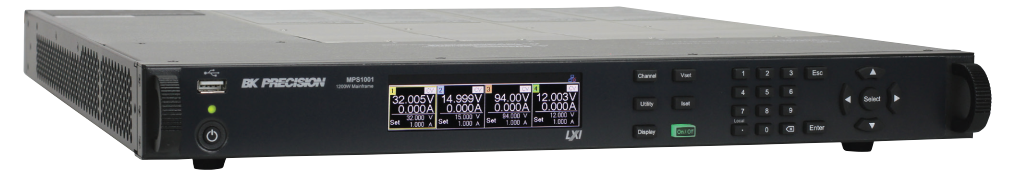

The B&K Precision MPS Series DC Power Supplies deliver up to 1200W of multi-channel power in a compact 1U rack-mount form factor. Featuring interchangeable plug-in modules, the system easily customizes to diverse testing and automation needs. Standard USB, LAN, and GPIB interfaces ensure seamless system integration and fast communication. Robust protection features and multi-range operation provide reliable, precise power for demanding applications.
Key Features
- Compact size supports up to four outputs in a 1U form factor
- Modular design
- Multi-ranging operation delivers rated power at multiple voltage/current combinations
- Advanced list mode programming
- Series/parallel operation increases maximum voltage/current output to 400V or 80A (depending on the model)
- Module synchronization and output coupling
- Clean output power
- Overvoltage (OVP), overcurrent (OCP), Overtemperature (OTP) protection, and key-lock function
- Adjustable voltage/current slew rates
- Front panel USB host port to save/recall instrument settings and list mode programs
- Save/recall instrument settings to internal memory
- Less than 10ms fast command processing time
- Digital I/O terminal offers external triggering, voltage fault, and remote inhibit capabilities
- Operating software and battery test software provided
- USB (USBTMC-compliant), LAN (LXI-Class C compliant), and GPIB interfaces standard
- NISPOM-compliant sanitization to securely restore factory settings
- Rack-mount kit included
- LabVIEWTM, IVI-C, and IVI.NET drivers provided
- cTUVus certification mark fulfills CSA and UL safety standards
Key Technical Features
Input
Input Voltage
100 VAC to 240 VAC
Input Frequency
50/60 Hz
Output
No. of outputs
4
Output Voltage
400 V
Current
3A - 20A
Efficiency
90%
Power
1200W
Temperature
23 °C ± 5 °C
Dimensions
75.4 x 42.6 x 316 mm
Standards Compliance
USB (USBTMC-compliant), LAN (LXI-Class C compliant), and GPIB interfaces
Manufacturer
Manufacturer
BK PRECISION
