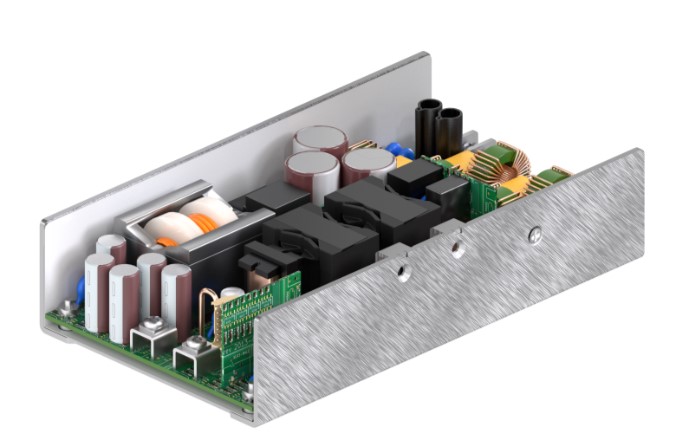

NCF660 Series – 660 Watts CF Rated Medical Power Supply
NCF660 Series
Advanced Energy’s SL Power NCF660 CF rated medically approved AC-DC power supplies are available with a nominal main output of 12 V, 15 V, 24 V or 48 V. NCF660 series power supplies provide up to 660 W of output power with air flow. All models have output overvoltage, short circuit and overload protection and a 7 x 4 x 1.6 inch form factor.
HIghlights
Features
• CF Rated Leakage Current <10μA
• 5 kV Defibrillator Withstand
• Up to 660 W with Air Flow, 440 W Convection
• Meets Class B Emissions Levels
• 4”W x 7”L x 1.6”H Size
• Universal Input 85 to 264 VAC, Class I
• Includes 5 V Standby Output
• IEC/UL/cUL/EN60601-1, Edition3.2
• Long Life: 7+ Years Electrolycti Capacitor Life
• Ease of Integration: Meets Class B emissions and 4th Edition EMC Requirements
• 3 Years Warranty
• RoHS, REACH Compliant
