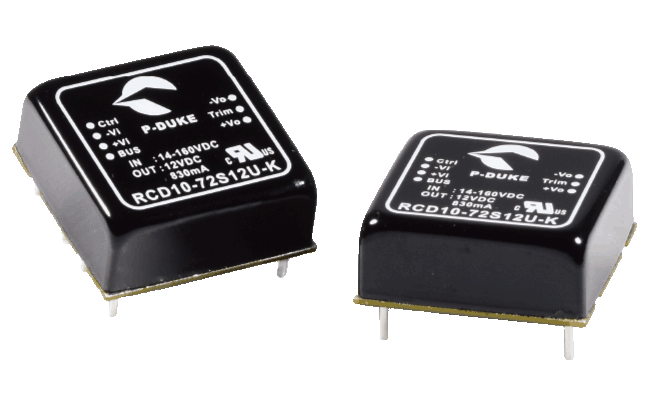

RCD10U: 10W Medical-grade DC/DC Converter
HIghlights
SPECIAL FEATURES
- 10W Output Power in a 1″x1″ Industrial Standard Package
- Approved to EN 50155, EN 45545-2,and IEC/EN/UL 62368-1 Standards
- 8:1 & 12:1 Input Voltage Range from 9-75V and 14-160V
- Patented Enhanced Hold-up Function for Supply Interruption and Changeover
- Adjustable Input Under-Voltage Lockout
- 3000VDC Input-Output Isolation
- Operating Temperature: -40°C to +105°C
- Operating Altitude: Up to 5000m
- 3-Year Product Warranty
Key Technical Features
Input
Input Voltage
9 -75 V
14-160 V
Input Frequency
230 kHz
Output
# of Outputs
Up to 2
Output Voltage
3.3, 5, 12, 15, 24, +/- 12 ; +/-15
Current
333-3000mA
Power
10W
Efficiency
86%
Operational Temp
(-40) - (+105)
Dimensions
25.4 x 50.8 x 15.8 mm
Standards Compliance
Medical: EN 50155 And EN 61373 Approval For Railway Applications ; Qualification For Fire Behavior According To EN 45545-2
Industrial: Approved to EN 50155
EN 45545-2
IEC/EN/UL 62368-1 Standard
Manufacturer
P-Duke
