G5.DT Drivetrain Inverter Test Solution
G5.DT Drivetrain Inverter Test Solution

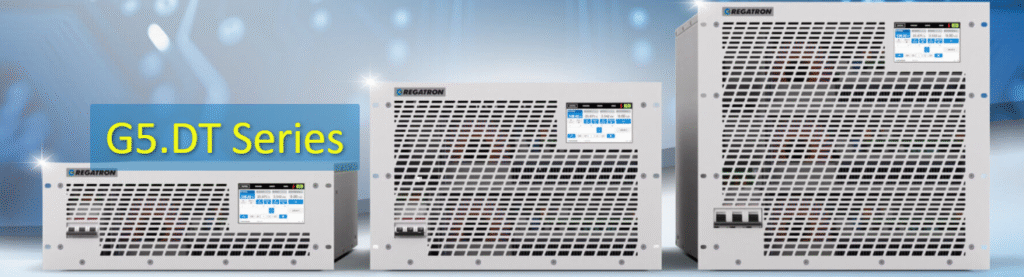

The Regatron G5.DT is a high-performance, regenerative DC power supply series engineered for drivetrain and inverter testing in EVs and other electrified systems. It offers ultra-fast response times (~100-200 µs), wide voltage/current ranges with an autoranging factor of 3, and supports control modes like CV, CC, CP, CR, and Ri/Gi. Safety features include PL e emergency stop, insulation monitoring, and optional load-side discharge (DC Discharge Unit). Modular, scalable design allows series, parallel, or mixed configurations up to very high power and voltage levels.
Features
Bidirectional, regenerative DC power supply for EV drivetrain and inverter testing
Ultra-fast response (≈100–200 µs) for dynamic load and drive cycle simulations
Wide autoranging capability (factor 3) to cover broad voltage/current ranges
Multiple control modes: CV, CC, CP, CR, Ri/Gi for versatile test scenarios
Advanced safety features: PL e emergency stop, insulation monitoring, optional DC discharge unit
Modular & scalable design – parallel, series, or mixed setups up to multi-MW power
