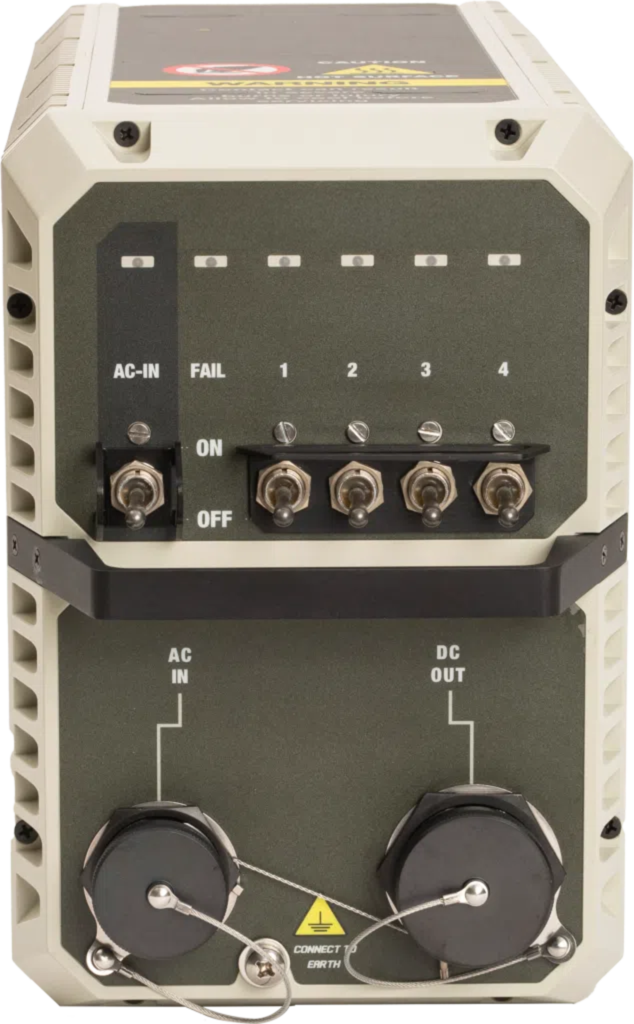

Titan 4G 2000W
Product Description
The TITAN 4G 2000W is a robust AC to DC power supply and battery charger designed specifically for demanding defense applications. Its reliable construction and electronics make it exceptionally well-suited for harsh environmental conditions.
With a waterproof housing ensuring durability and performance, the TITAN 4G 2000W delivers an impressive output of 28 VDC with 72 A. It features dual non-isolated channels, each capable of providing up to 36A continuous power, allowing for versatile and efficient power distribution.
The TITAN 4G 2000W excels in extreme temperature ranges, operating from -40°C up to +80°C. It boasts high efficiency and reliability, with 100% convection cooling that eliminates the need for external or internal fans. Designed to meet industry regulations, including RoHs, MIL-STD 810 & 461, EN61000, and IEC 60950-1, the TITAN 4G 2000W ensures compliance and safety. It offers precise control with individual on/off capabilities for each channel. Despite its exceptional performance, the TITAN 4G 2000W remains relatively compact and lightweight, with dimensions of 283x193x430mm (283x193x478mm with handle) and a weight of just 20kg (44lb).
HIghlights
- Wide Input range – AC 85-264 VAC wide-input range
- 2,000W, 28 VDC Dual Non-Isolated
channels power supply - Rugged & waterproof (IP65)
- Extreme temperature operating ranges from -40◦C up to +80◦C
- High efficiency & reliability
- 100% convection colling, no external or internal fans
- Regulations RoHs (MIL-STD 810 & 461, EN61000, IEC 60950-1)
- On/Off control each channel
