TR30RDM SERIES 30 WATT AC-DC MEDICAL INTERCHANGEABLE PLUG ADAPTER
TR30RDM SERIES

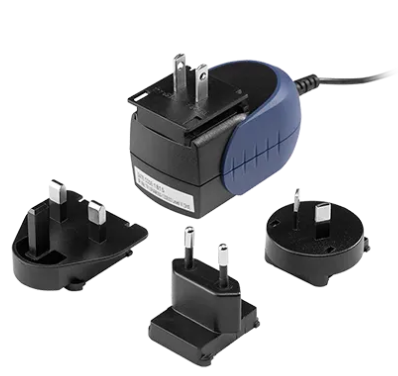

The Cincon TR30RDM Series is a 30 W medical-grade AC-DC wall-mount power adapter offering reliable, efficient, and medically compliant power delivery for healthcare, home healthcare, and professional electronic applications. Designed with interchangeable AC plugs for global use and a compact form factor, the TR30RDM Series delivers high performance while meeting stringent safety and efficiency standards.
Key Features
Universal Input Voltage: Supports a wide 80 VAC – 264 VAC range suitable for worldwide use.
High Efficiency: Up to 88 % efficiency, minimizing energy loss and heat generation.
Interchangeable AC Plugs: Modular AC plug system allows easy adaptation to US, EU, UK, and other regional outlets.
Medical Safety Approved: Complies with IEC/EN/UL 60601-1 2 MOPP and EN 60601-1-11 for home healthcare applications, ensuring operator and patient protection.
Low Leakage & Standby Power: Very low leakage current (< 50 µA) and no-load power < 75 mW support safety and energy compliance.
Strong Protection: Includes continuous short-circuit protection and over-voltage protection for enhanced reliability.
EMC & Environmental Ratings: Meets EN 55011, FCC Class B, IP22 drip-proof rating, and operates at altitudes up to 5000 m
